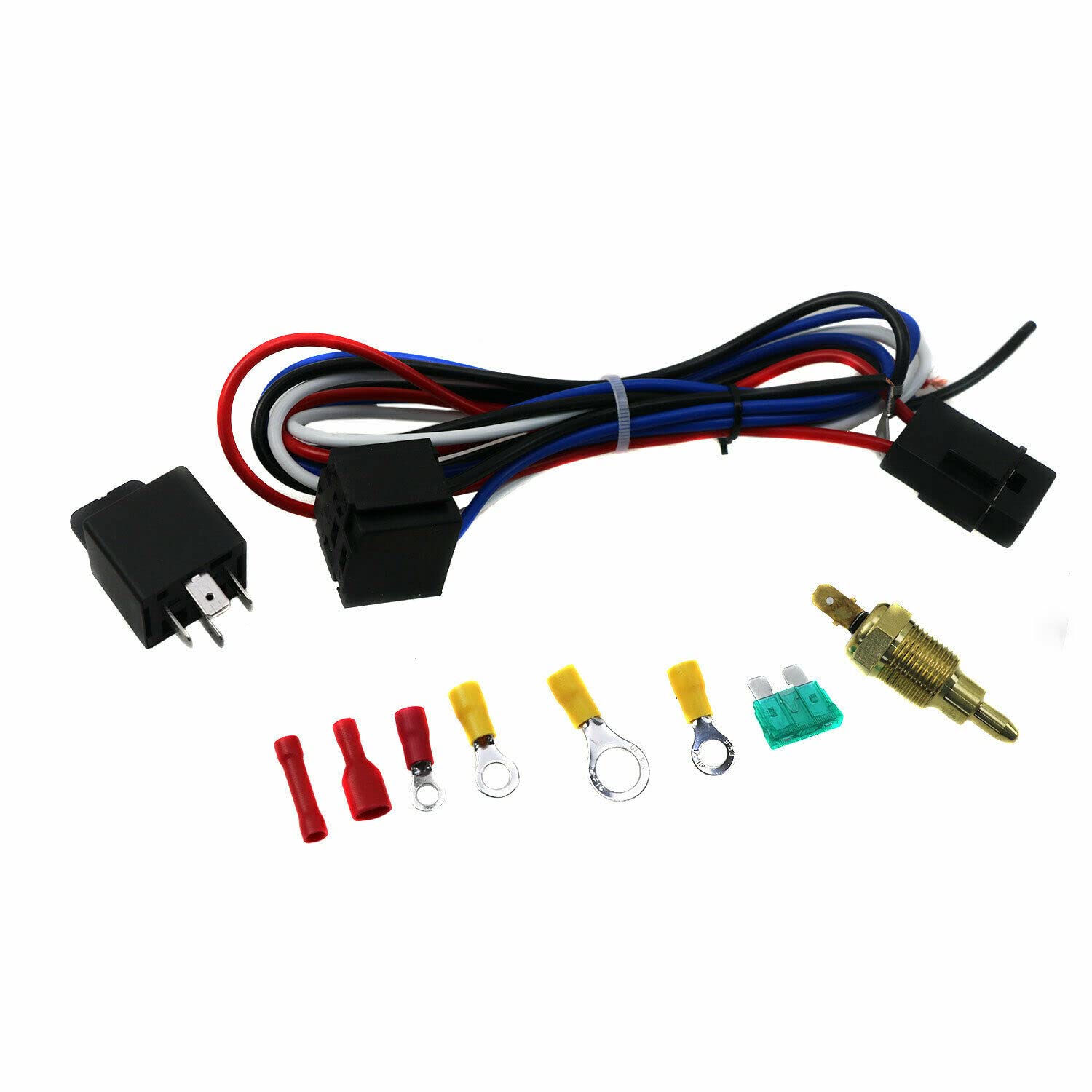

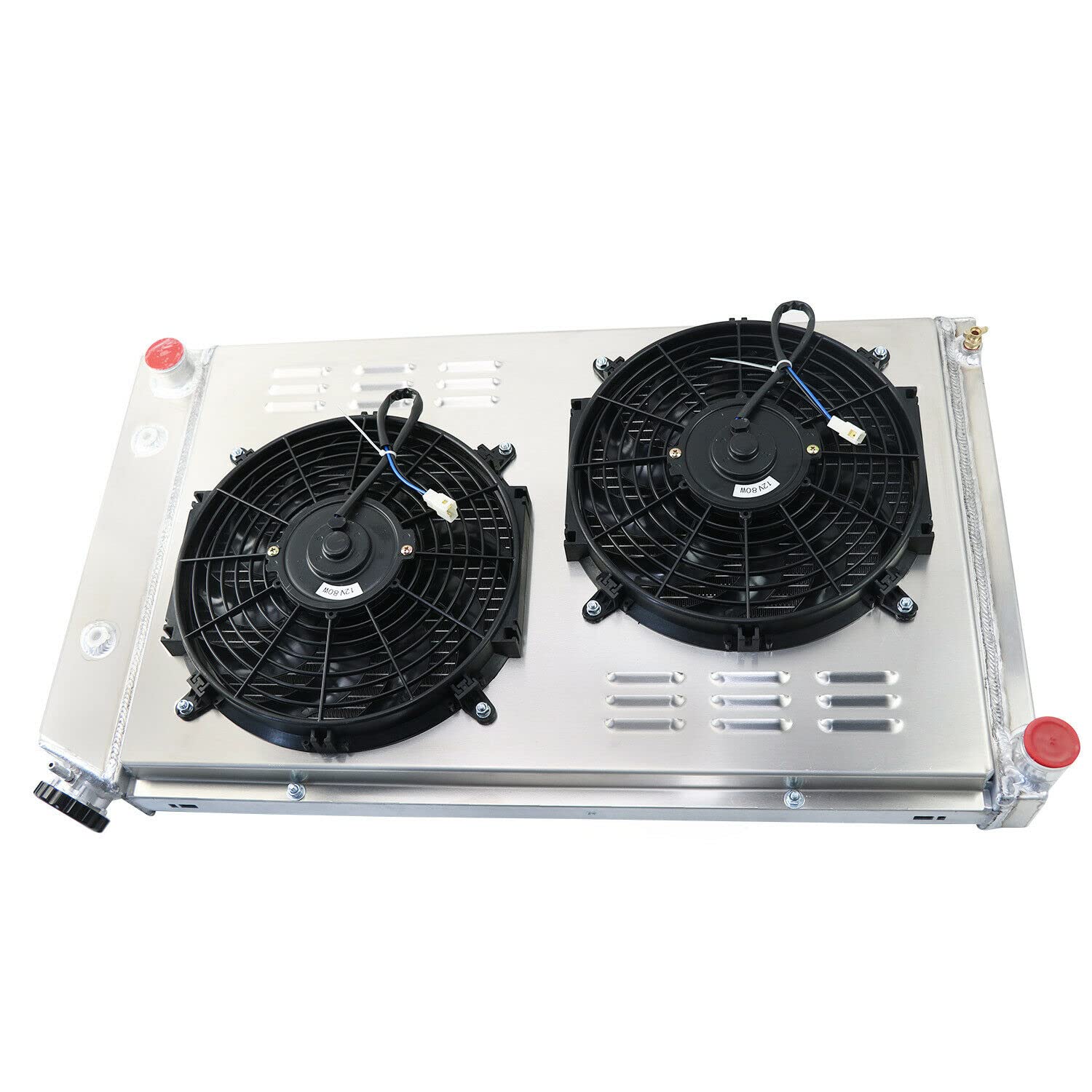

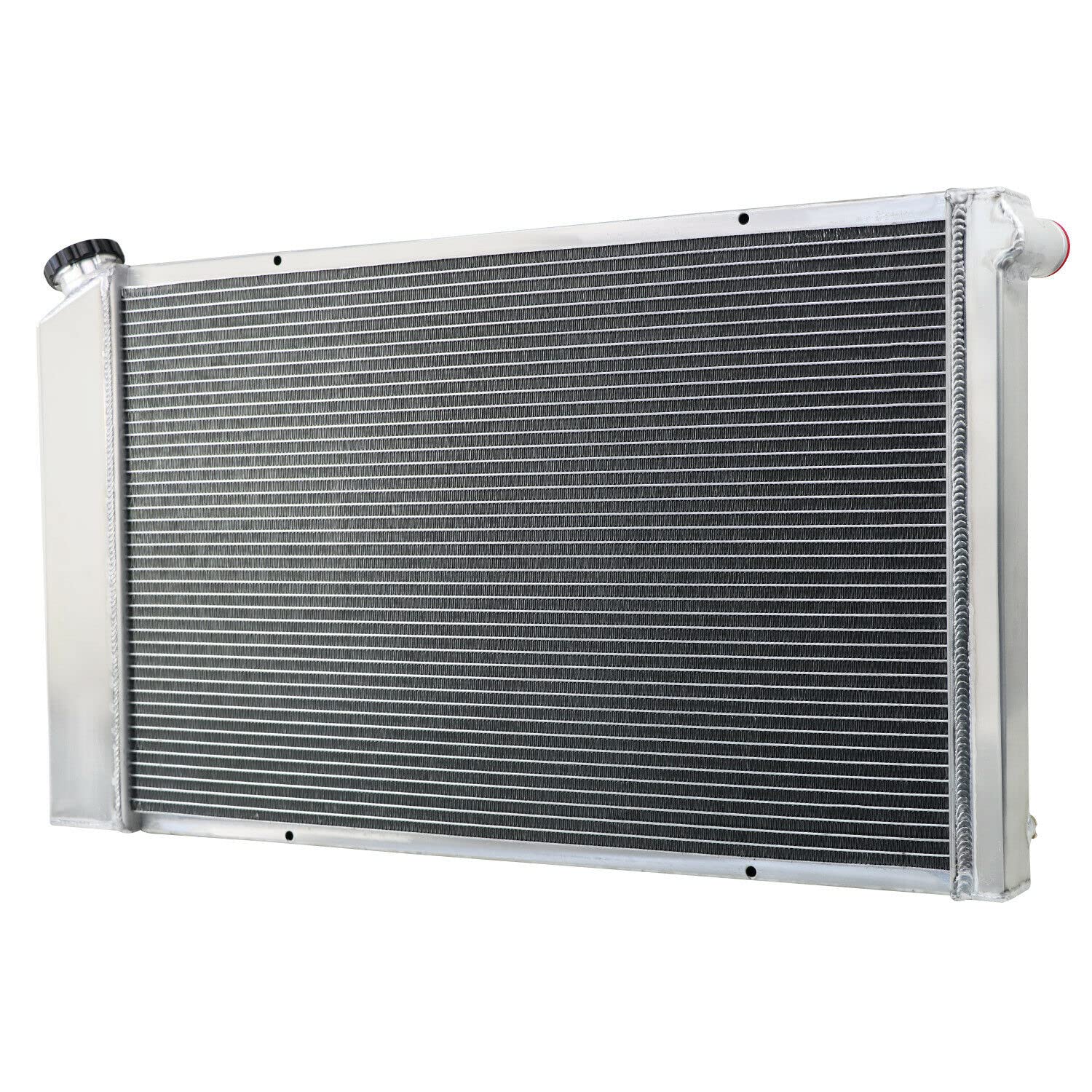

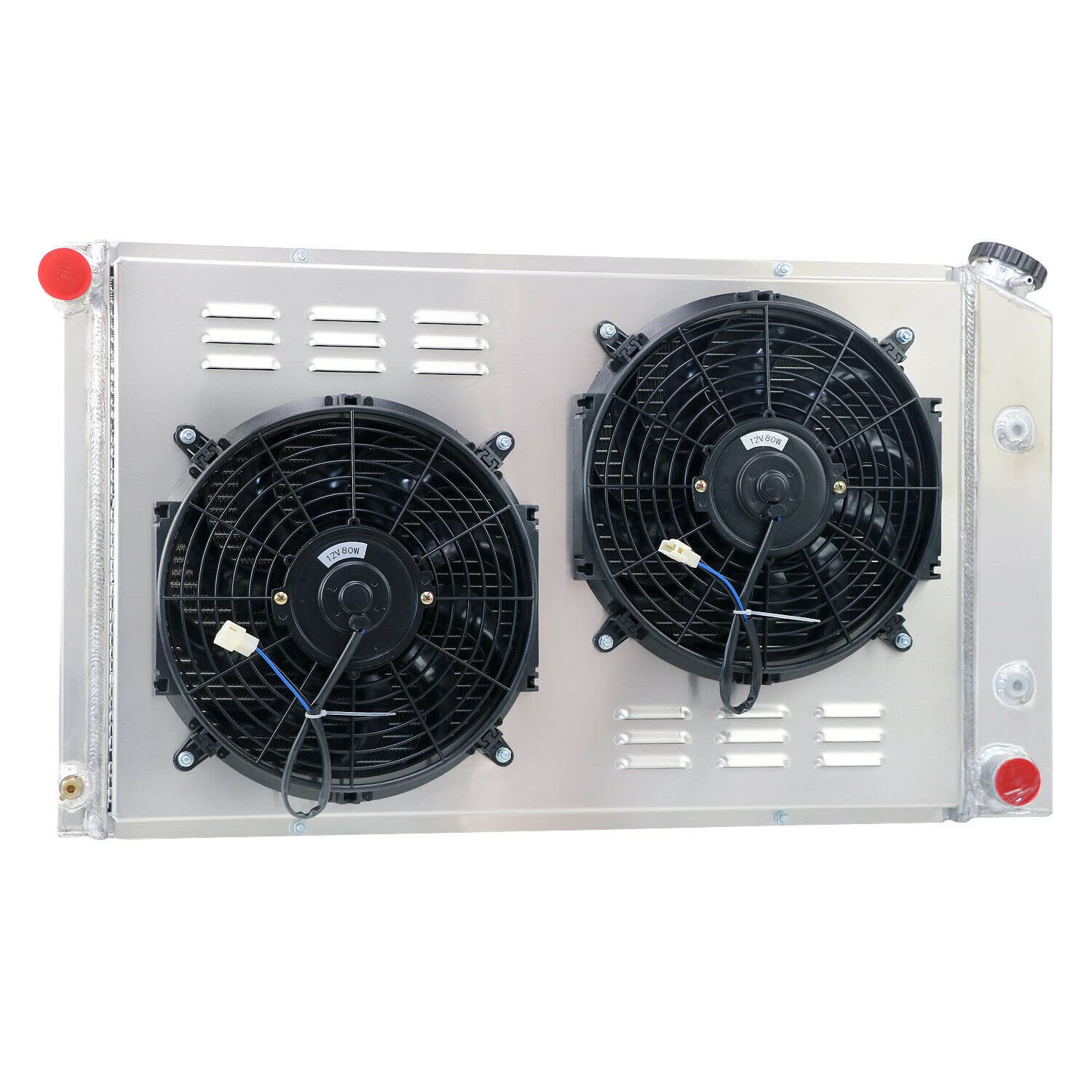

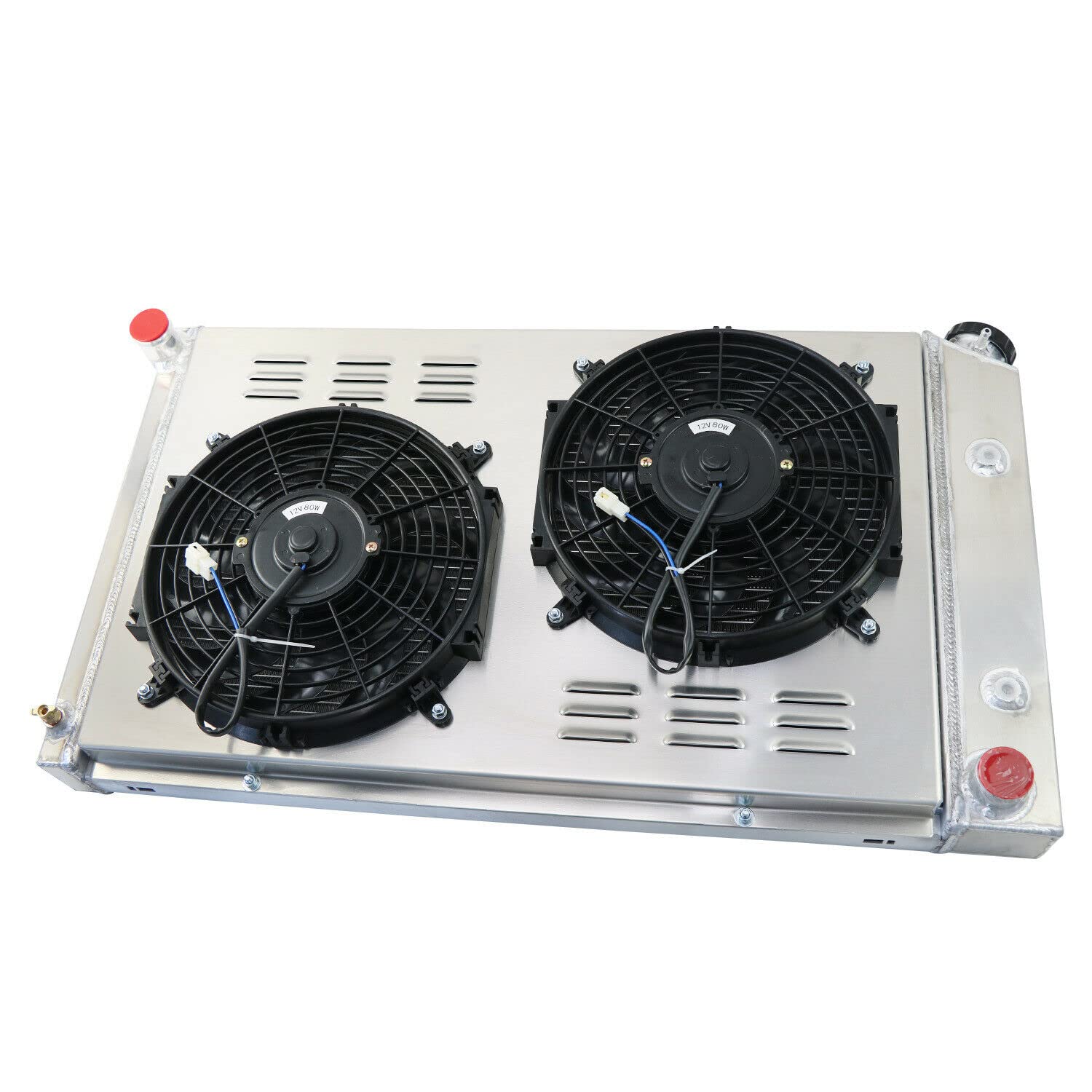

ALLOYWORKS 4-Row Aluminum Radiator with Shroud Fan & Relay Kit for 1970-1981 Pontiac Firebird/Trans Am V8 I6 4.3L - High Performance Cooling Upgrade for Classic Muscle Cars & Hot Rods

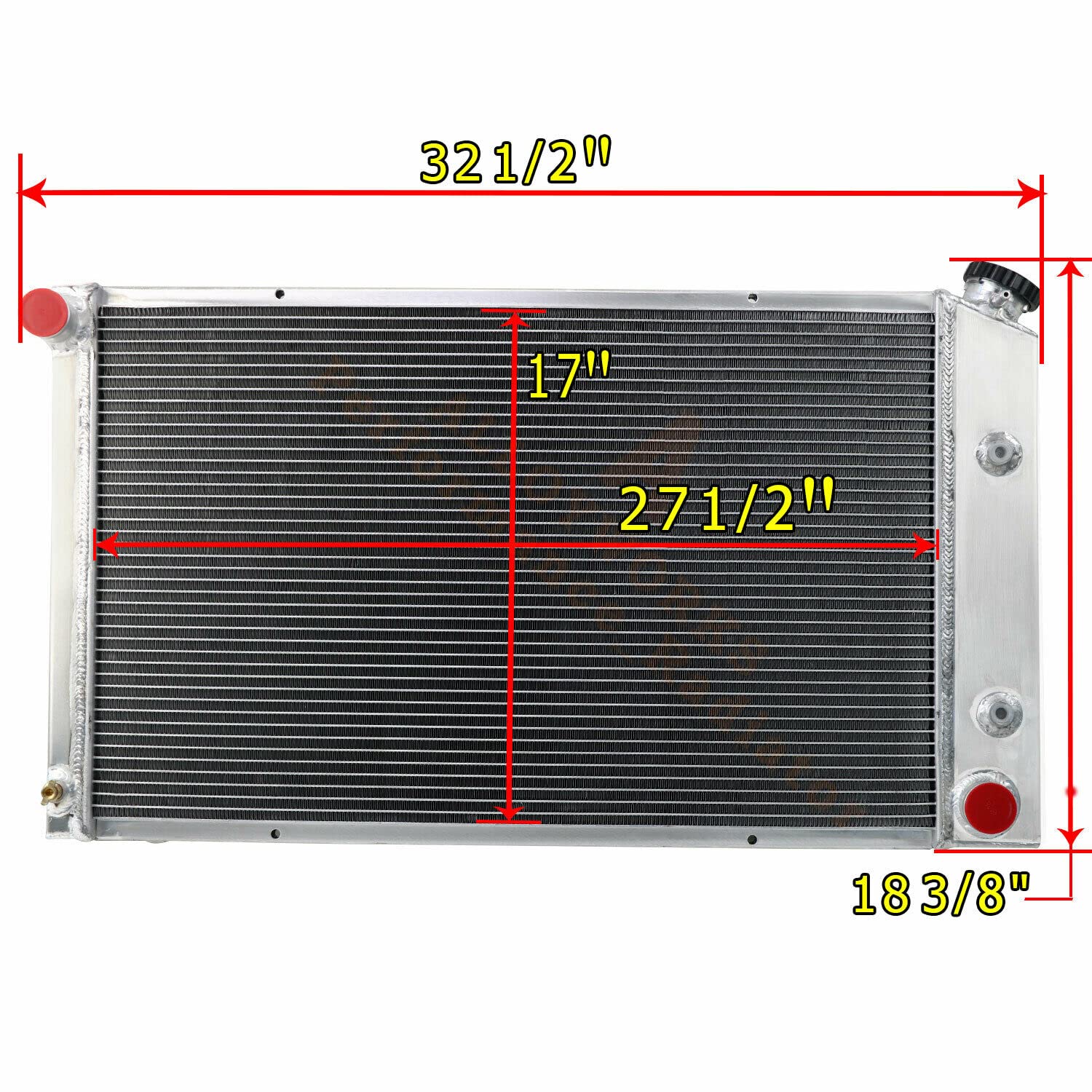

FITMENT:For 1970-1981 Pontiac Firebird/Trans Am V8 I6This radiator is designed for either a 3.8L(231ci) V6, 4.3L(265ci) V8, 4.9L(301ci) V8, 5.0L(305ci) V8, 5.7L(350ci) V8, 6.6L(400ci) V8 or a 6.6L(403ci) V8 engine. Specifications:High Performance Racing Spec.4 Row of tubes Core Racing DesignCore Size: 17" H x 27 1/2" WOverall Size: 18 3/8" H x 32 1/2" WUpper Inlet: 1 1/2" on driver sideLower Outlet: 1 1/2" on passenger sideTransmission Oil Cooler: G1/4(Z)OEM Style Brass PetcokeCNC machined filler neck and 1.3BAR CapPlease Check the Size Before You Buy! Fan Specification:12" FanVoltage: DC 12 VoltsMaximum Fan CFM: 2150 cfmWattage: 80 WattageThickness (in): 2.500"Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie Installation

◆ Radiator Replacement for 1970-1981 Pontiac Firebird/ Trans Am V8 I6

◆ Improves cooling by 35% to 45% temperature

◆ Made of high quality full T-6061 aluminum construction

◆ Stronger and higher capacity for coolant than stock units

◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
