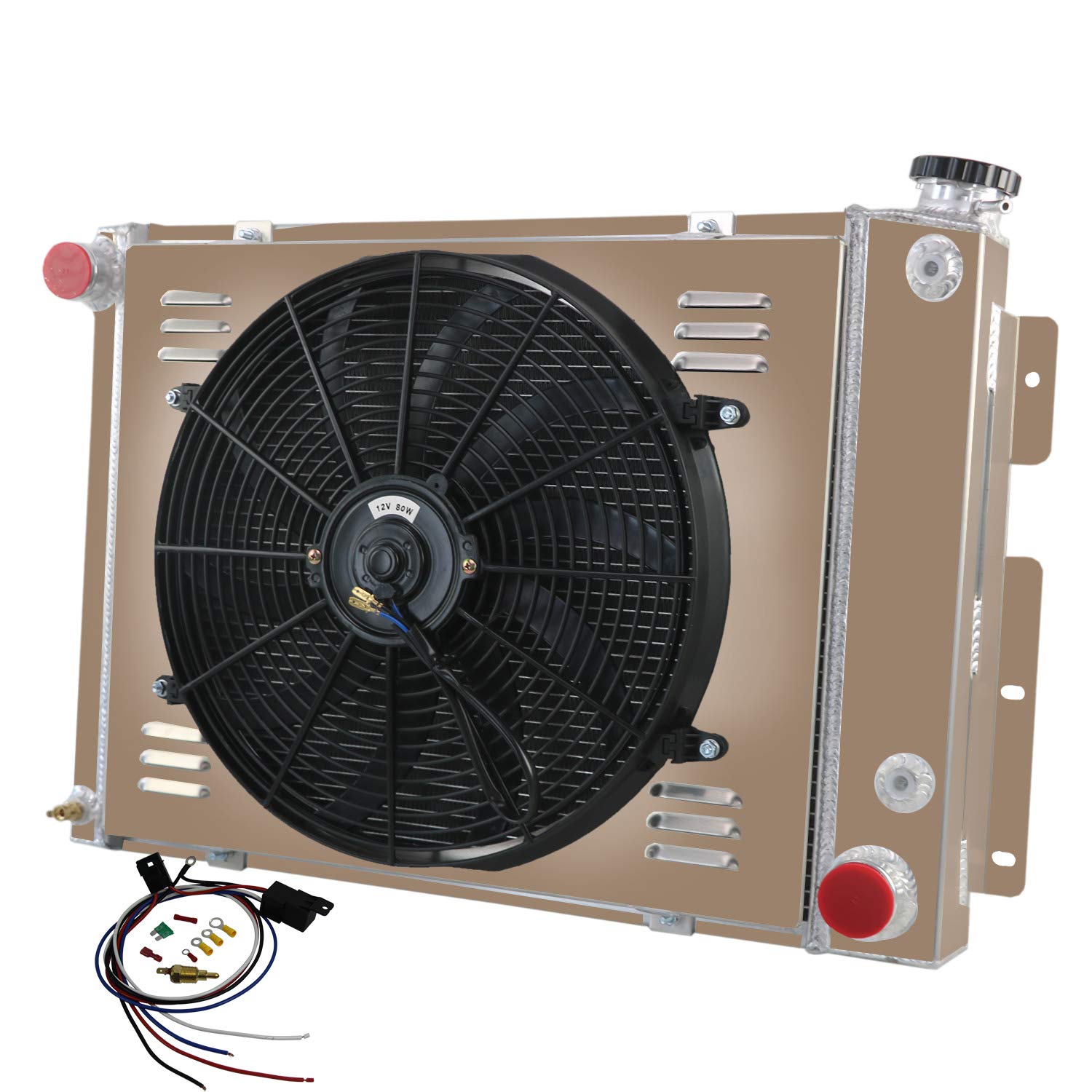

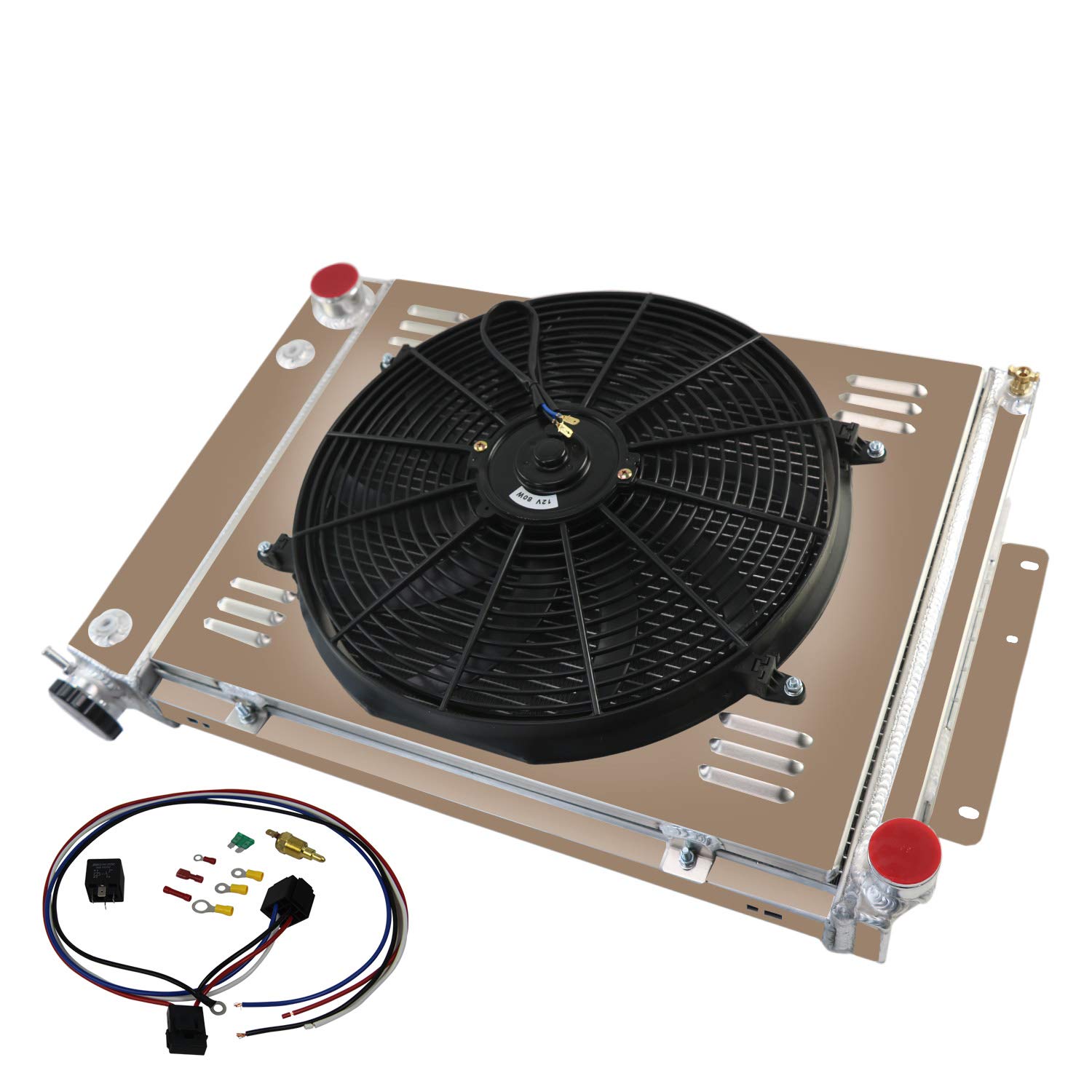

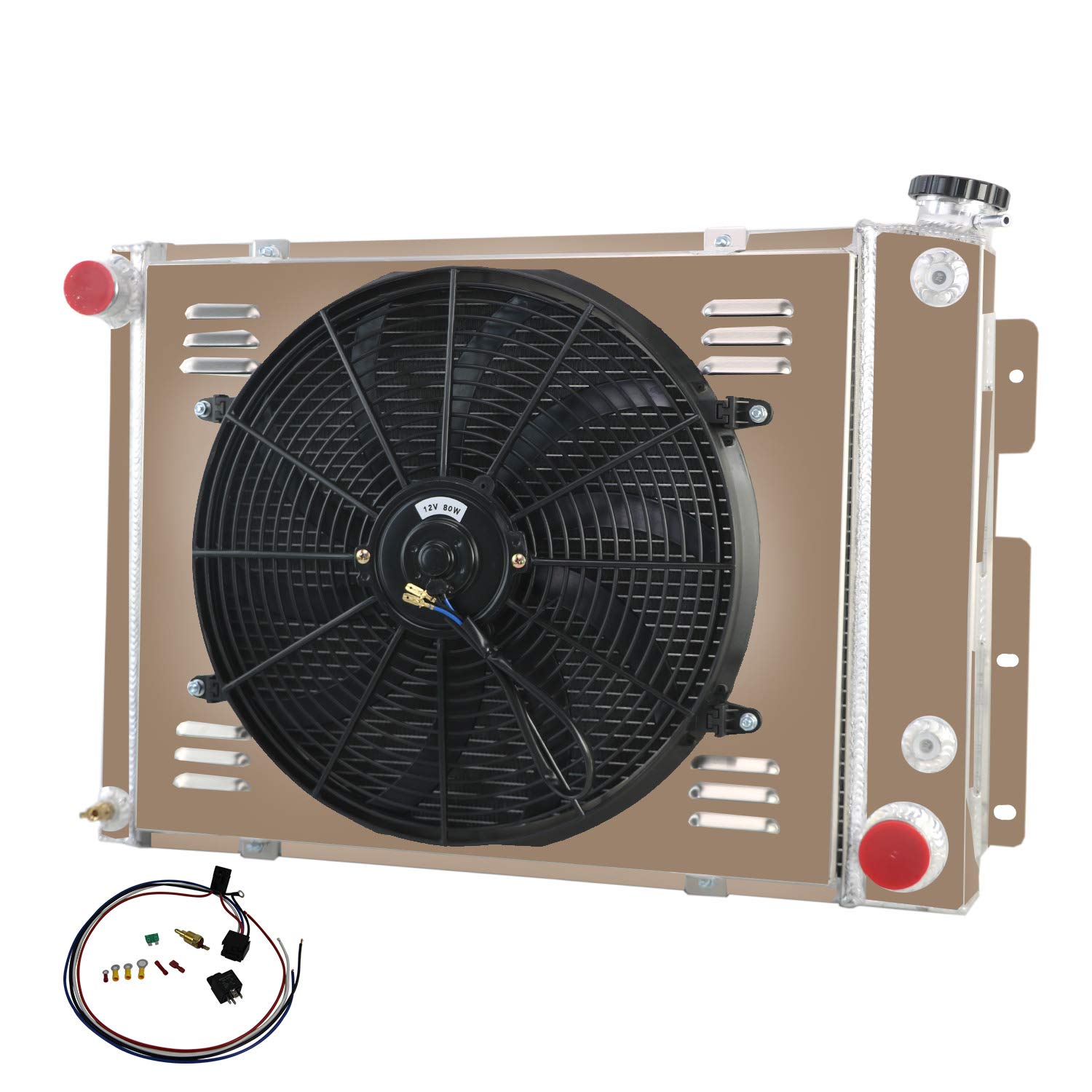

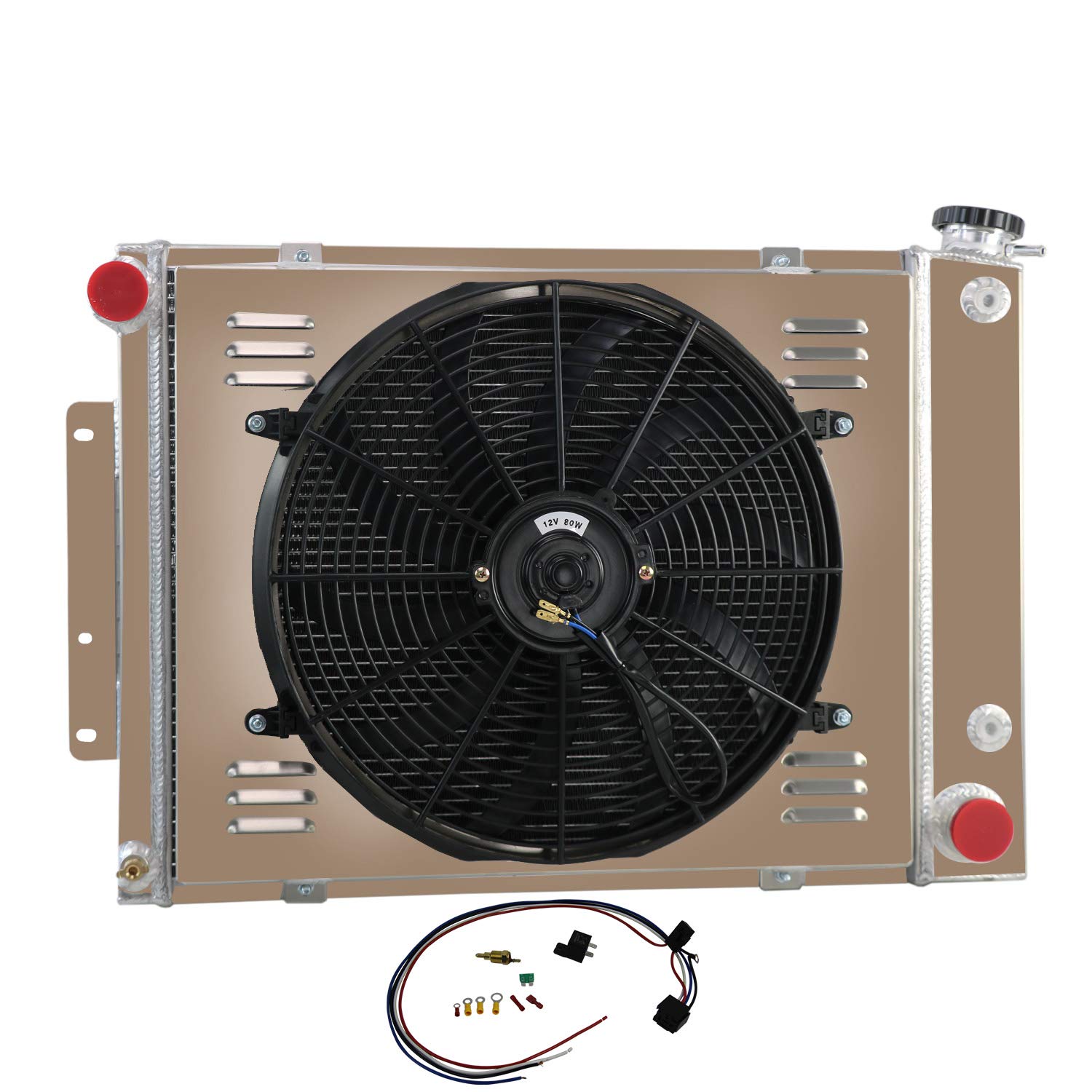

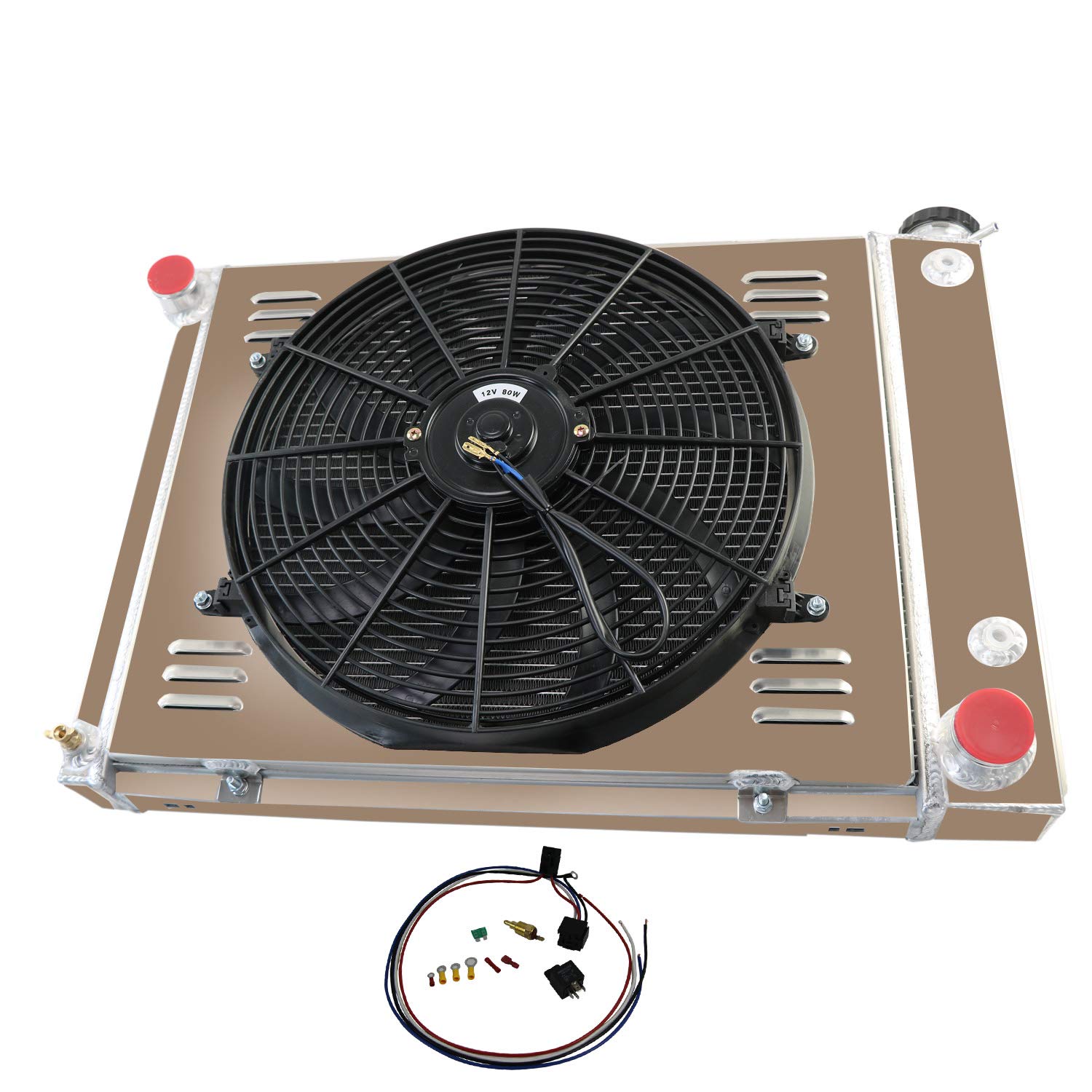

ECMRAD 3 Row Aluminum Radiator Shroud Fan for 1967-1969 Chevy Camaro Small Block Z28, Pontiac Firebird & Trans Am - 21" Wide Core - High-Performance Cooling for Classic Muscle Cars & Hot Rods

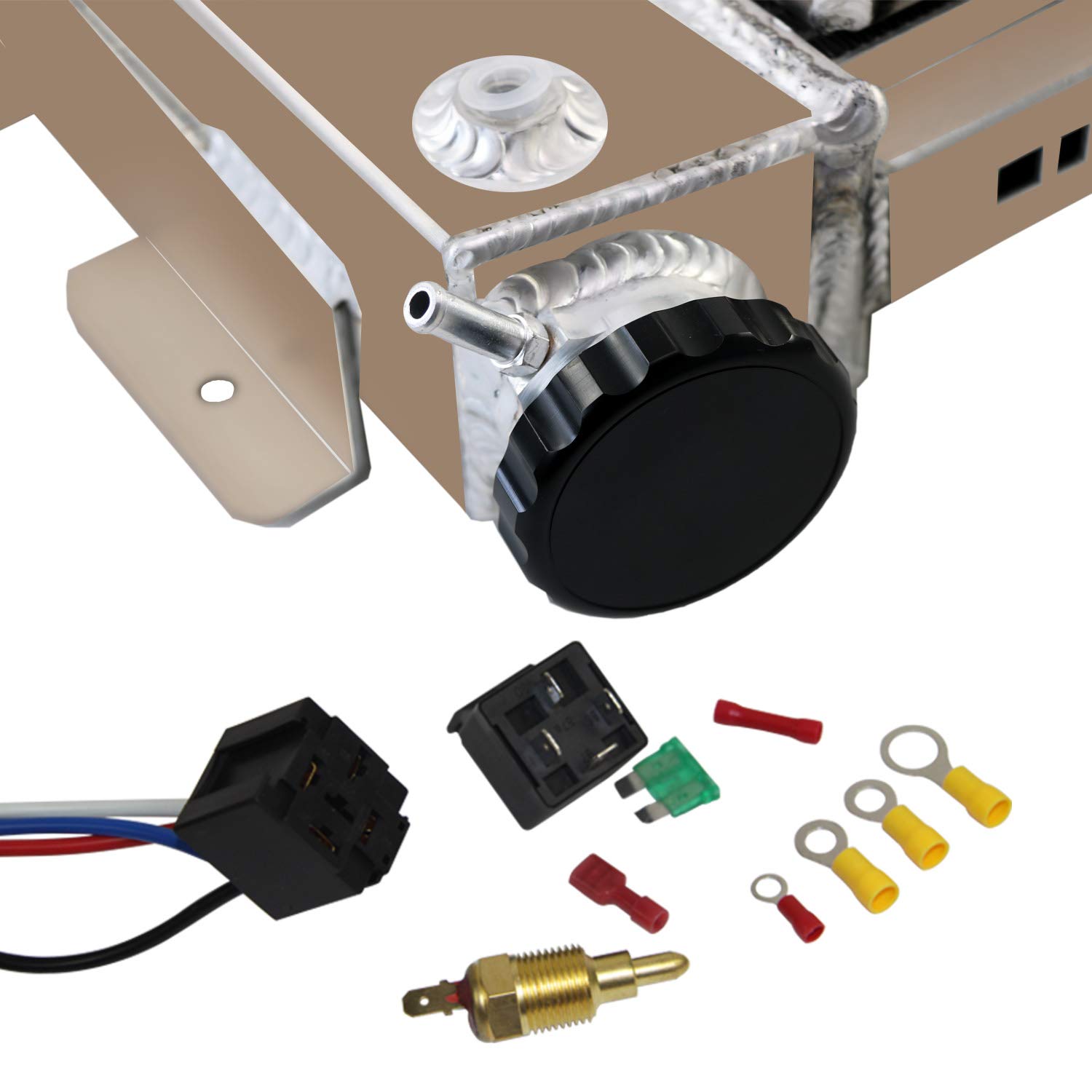

ECMRAD Aluminum Radiator is produced and designed to provide maximum cooling efficiency to prevent engine cooling failure. It is made of full aluminum light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. It has an increased durability over the factory plastic end tank radiator, and much inmprovwed engine cooling. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.This Radiator Compatible for: for 67 68 69 Small block Chevy Camaro Z28 for 1967 1968 1969 CHEVY CAMARO/FIREBIRD T/A 5.7L V8 for 1967 1968 1969 CHEVY CAMARO 21" WIDE CORE Radiator Size Details: Core Size: 17" H x 21" W Overall Size: 18.3" H x 28.5" W Upper Inlet 1.5" located on the Driver side Lower Outlet 1.75" located on the Passenger side Transmission Oil Cooler: Included Oil Cooler Fittings: 1/2-20 Straight Thread, G 1/4 New radiator cap include Package Included: 1 X 3-Row Aluminum Radiator w/ Radiator Cap 1 X Aluminum Shroud 1 X 14" Fans (Includes mounting kits) 1 X Thermostat Relay Kit in a Carton Box

Full Aircraft 5057 aluminum construction with durable, TIG-welded end tanks

Stringently tested to guarantee optimum performance and dependability

Compatible for 67 68 69 Camaro Small Block 21"Wide core, Pontiac Firebird Small Block

Core Size 17" H x 21" W / Overall Size 18.3" H x 28.5" W

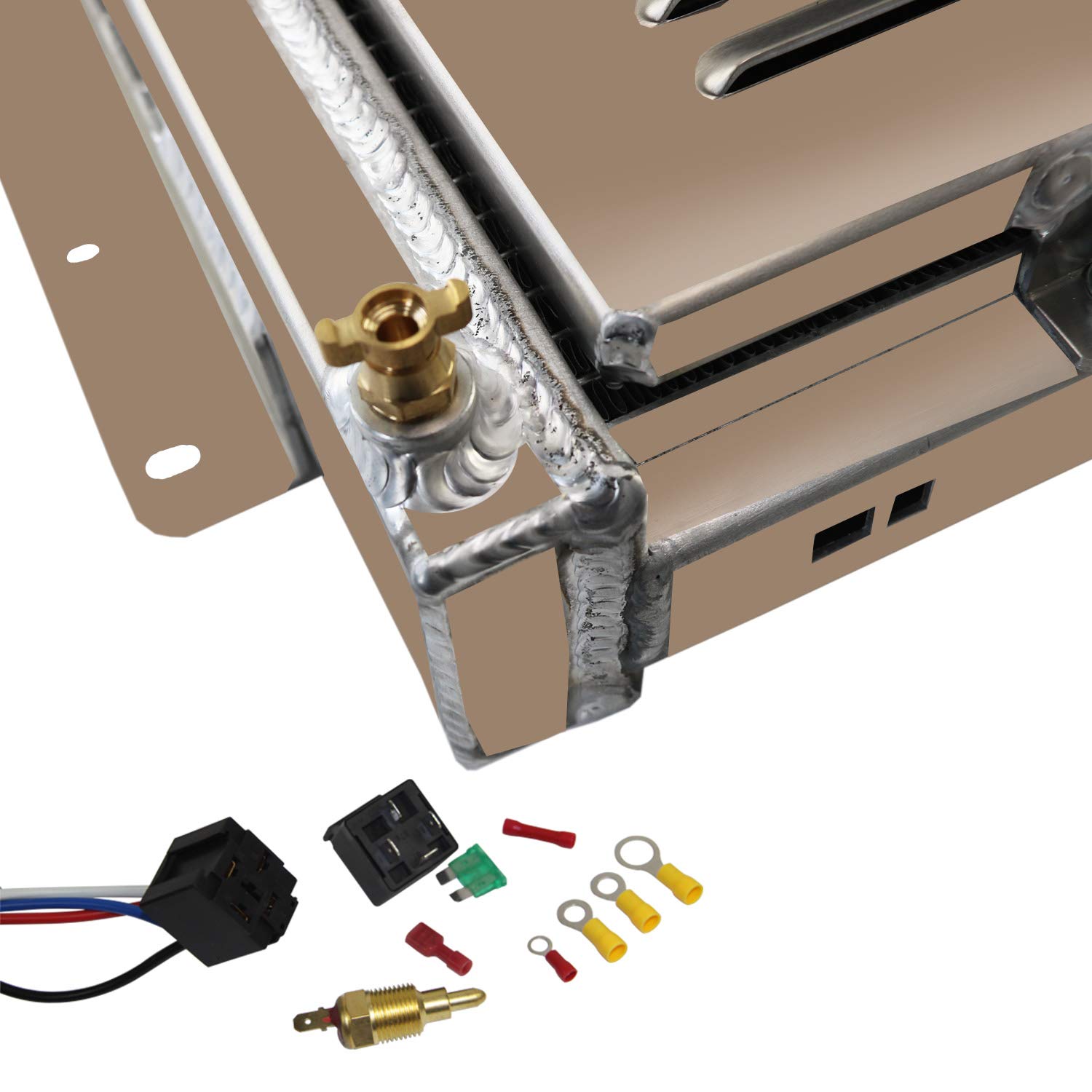

Transmission Oil Cooler included, built-in, OEM Style Brass Petcock Drain
